The simulator runs on two Windows 10 machines both running a copy of X-Plane 12
There is one Master machine and one Visual machine.

X-PLANE MASTER PC: Hosts the X-Plane flight model, flight controls and connected hardware and front display


Processor:
3.20 gigahertz Intel 12th Gen Core i9-12900K
1.38 megabyte primary memory cache
14 megabyte secondary memory cache
60 megabyte tertiary memory cache
64-bit ready
Multi-core (16 total)
Hyper-threaded (24 total)
Main Circuit Board:
Board: ASUSTeK COMPUTER INC. PRIME Z790-V AX
Bus Clock: 100 megahertz
UEFI: American Megatrends Inc. 1820 05/14/2025
Memory:
63.79 Gigabytes Usable Installed Memory
Display:
NVIDIA GeForce GT 1030 [Display adapter] (2x)
NVIDIA GeForce RTX 3090 [Display adapter]
Generic PnP Monitor
HEC 75R6+ [Monitor] (74.9"vis)
HP 22er [Monitor] (23.0"vis)
HTR CL03-HDMI [Monitor] (8.4"vis)
Lenovo HDMI-HH [Monitor]
MSI MP243X [Monitor] (23.8"vis)
MST MStar Demo [Monitor]

X-PLANE VISUAL PC: Hosts all the X-Plane external visuals including the two side window displays and two side windscreen displays in portrait mode

Processor:
3.20 gigahertz Intel 12th Gen Core i9-12900K
1.38 megabyte primary memory cache
14 megabyte secondary memory cache
60 megabyte tertiary memory cache
64-bit ready
Multi-core (16 total)
Hyper-threaded (24 total)
Main Circuit Board:
Board: Gigabyte Technology Co., Ltd. Z790 UD AC
Bus Clock: 100 megahertz
UEFI: American Megatrends International, LLC. F12 01/07/2025
Memory: 63.77 Gigabytes Usable Installed Memory
Display:
Intel(R) UHD Graphics 770 [Display adapter]
NVIDIA GeForce RTX 3090 [Display adapter]
Acer ER320HQ [Monitor] (31.5"vis)
Acer ER320HQ [Monitor] (31.5"vis)
ViewSonic VA3209-FHD [Monitor] (31.5"vis)
ViewSonic VA3209-FHD [Monitor] (31.5"vis)

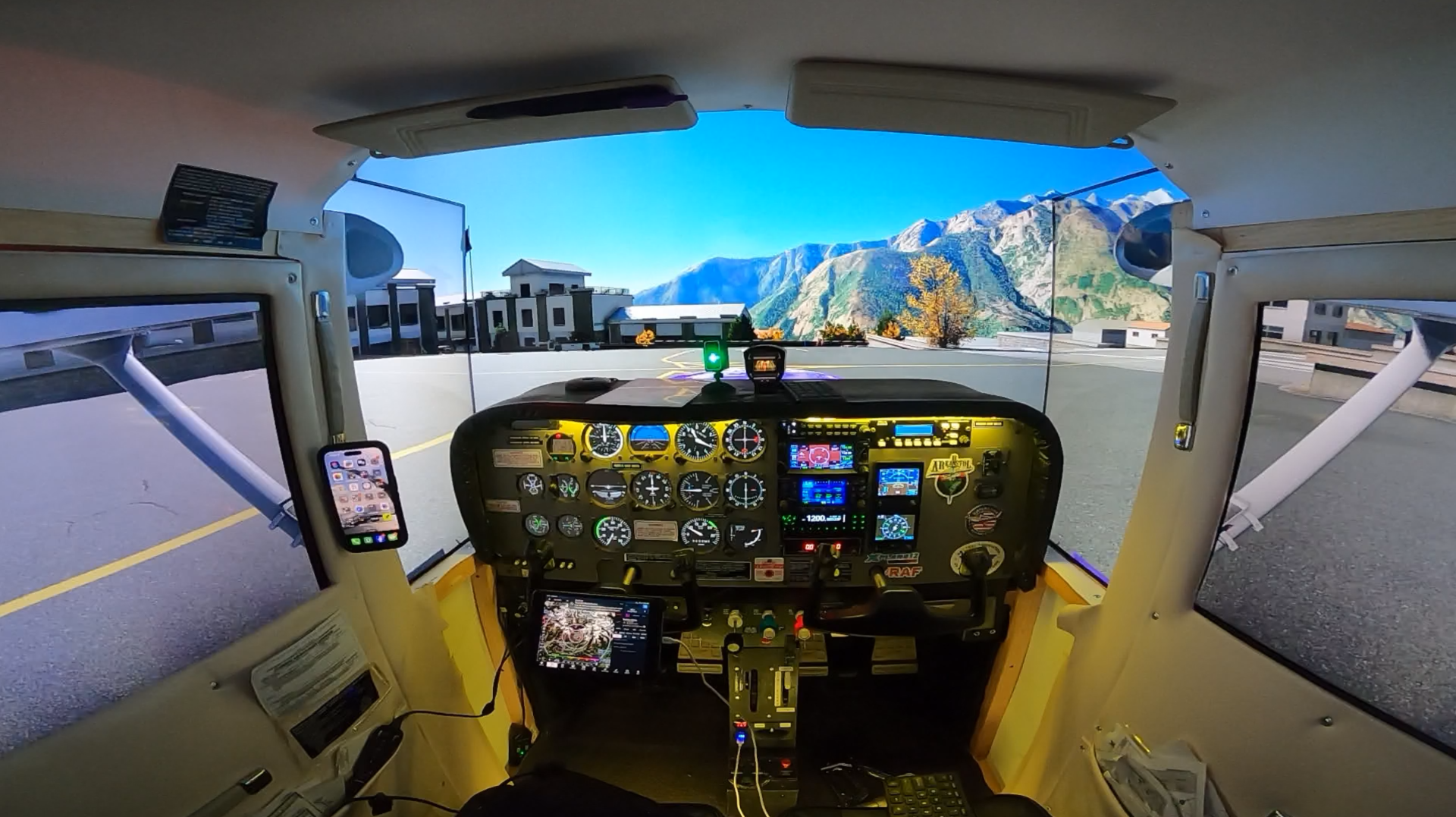

Simulator Hardware:
-Steam gauge panel: Home built by me using 3D printer and rotary encoders, placed into 1/4" birch wood overlaid on a 22" HP monitor. The gauges are powered by Air Manager and Arduino
-Wet compass: Composs by Virtual Fly
-Circuit breaker panel: Home built by me
-The Cessna switch panel and parking brake are from Desktop Pilot
-The fuel select panel are supplied by Desktop Aviator
-The Cessna momentary contact flap switch is from Etsy store: DIYCockpitPanels
-Audio Panel, Com/Nav 1 GTN650, Com/Nav2 GNS430 and G5's are supplied by RealSimGear
-DME and auto pilot provided by Prop Wash Simulations
-Transponder, AoA indicator, Hobbs meter, ELT and trim wheel provided by SimTech Ltd.
-Left & Right Yoke Yoko+ by Virtual Fly
-Left & Right Rudder Pedals Ruddo+ by Virtual Fly
-TPM: V3RNIO+ by Virtual Fly
-GA intercom: FSX Dual by Flight Sounds, LTD
-Primer reclaimed from a Cessna 172
-Carb heat and Alt Static are STDP switches
-Seats: Boat seats from Amazon
-Butt Kicker mini per seat
-BKA-130-OE Butt Kicker Amplifier
-Cessna 172 sun visors
-Cessna 172 functional air vents
-Cessna 172 door pull straps

Simulator Software (other):
-Orthophotos via Ortho4XP for scenery
-Sim Shaker for Aviators with the Sim Shaker sound module extension for feeling the flight
-Air Manager to provide the steam gauges, Garmin G5's and Angle of Attack indicator
-Pilot Edge plug-in
-X-Pilot for connecting to VATSIM
-Immersive LCD Pro by Fly-Elise for the screen warping
-VFHub for the flight controls
